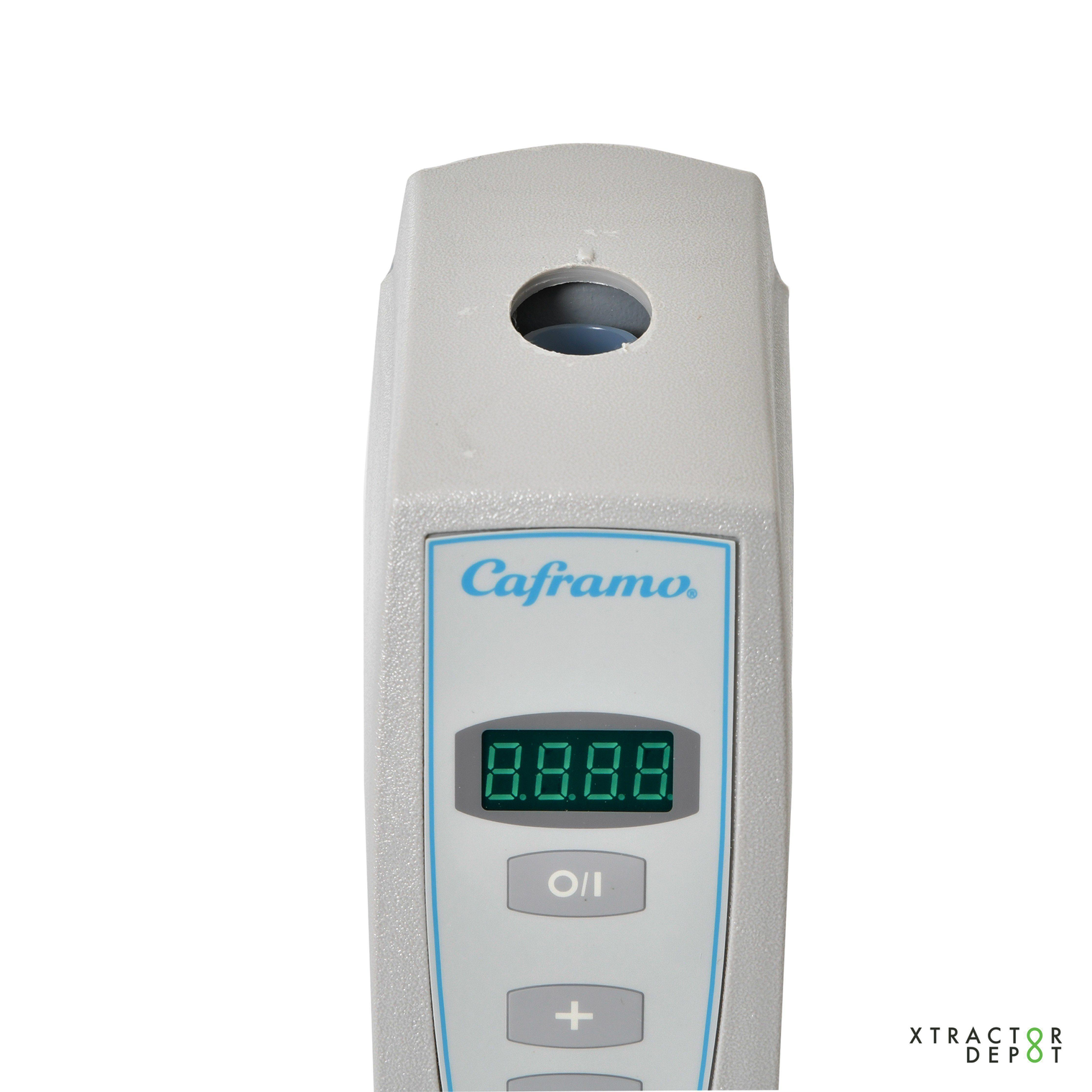

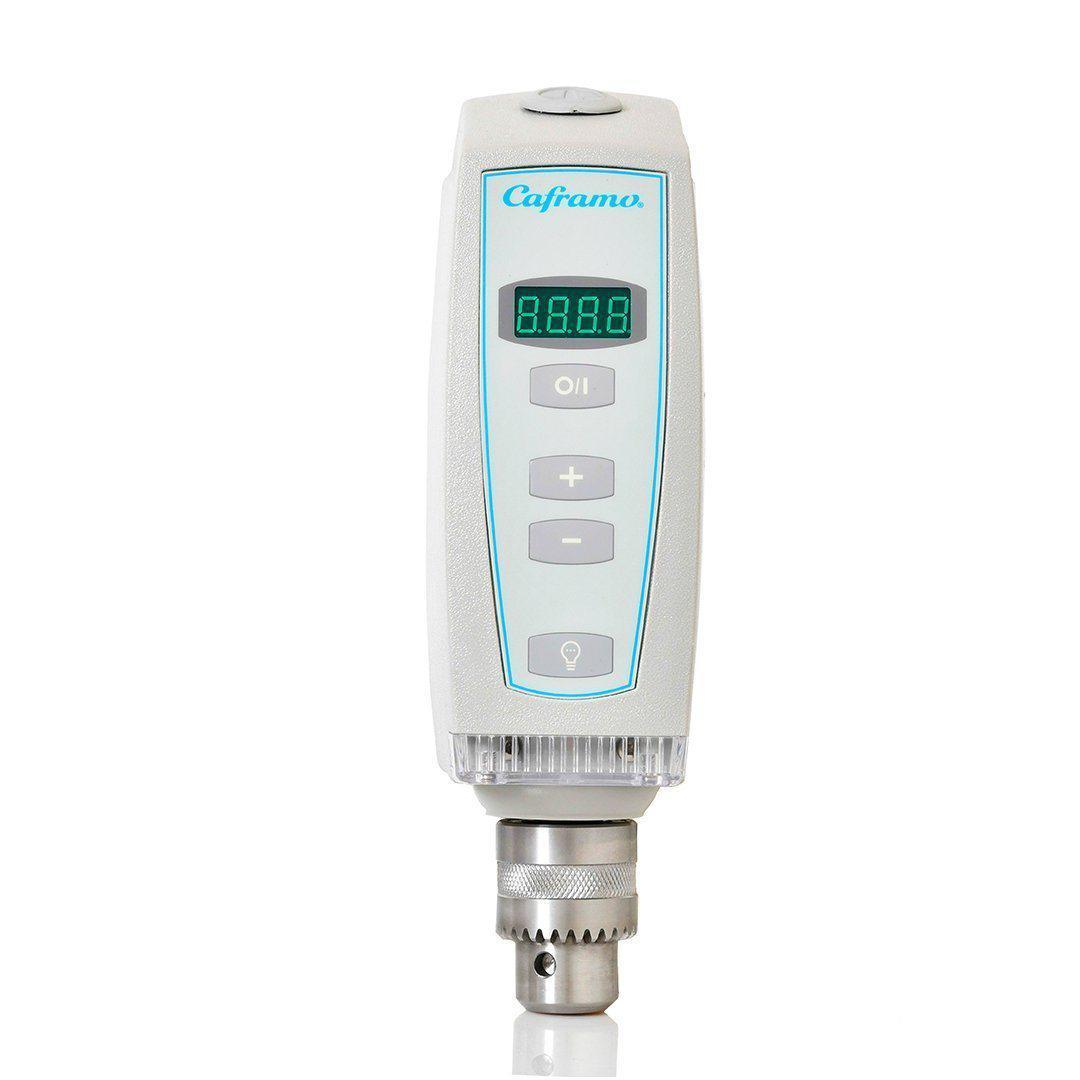

Caframo BDC2002 Overhead Stirrer
SKU:
3911023
$ 1,649.99
(
/
)
Unavailable
Caframo’s BDC2002 offers ultimate versatility and maximum productivity. With the push of a button, the unique Stirlight™ lights up so that solutions can be seen clearly.

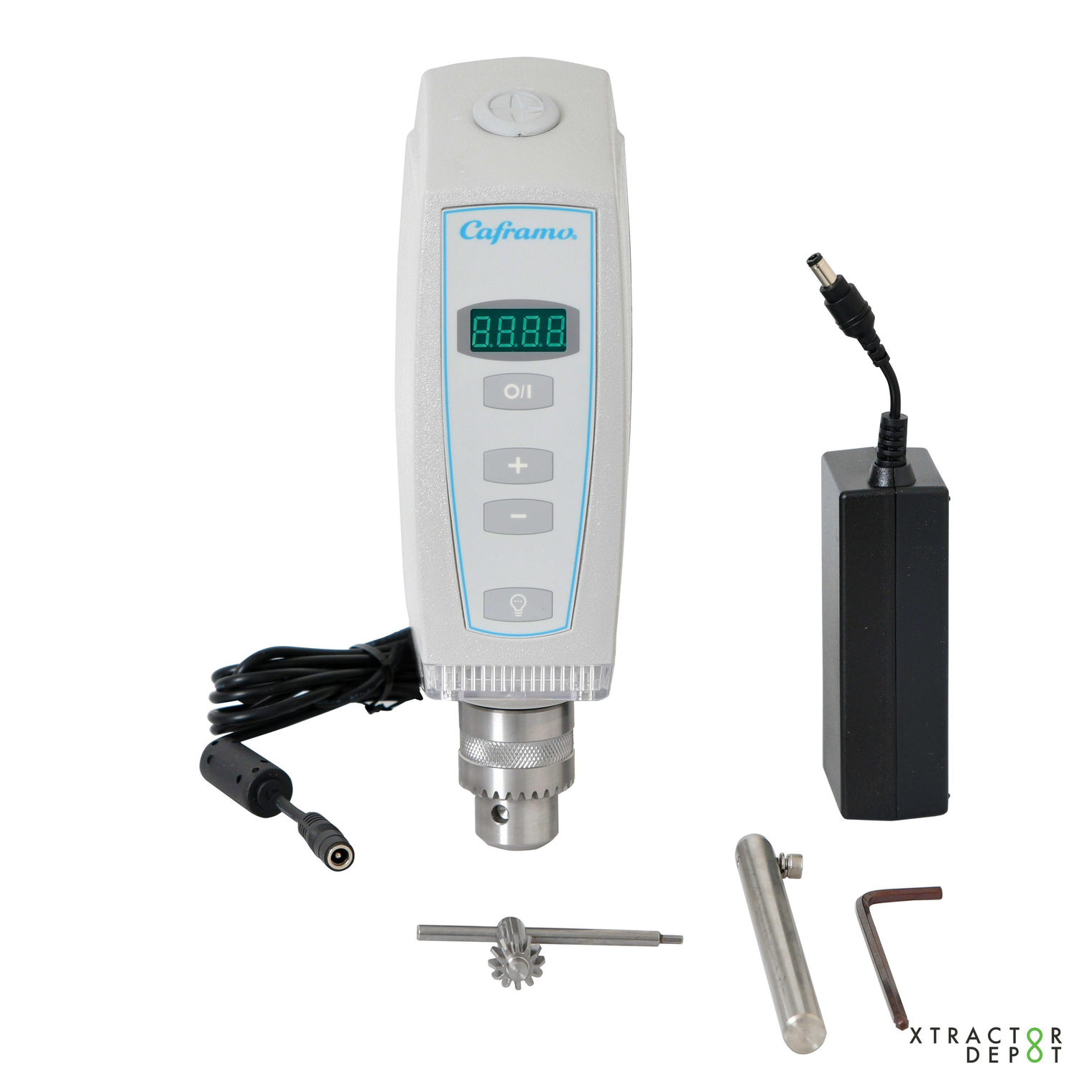

Included in each purchase: Overhead stirrer motor, chuck, chuck key, support rod, external power supply, grounded power cord, manual in four languages (English, French, Spanish and German) and three-year warranty.
Features:
- Stirlight™
- Sealed housing
- Brushless DC motor
- Digital display
- Through shaft
- Electronic digital control
Benefits:
- Allows monitoring mixing properties of batches
- Keeps liquids and moisture out in aggressive environments
- High efficiency (less heat)
- Precise speed adjustment
- Easy impeller adjustment saves time
- Set speed is maintained as viscosity changes
- Automatic overload protection
Specifications:
| Speed | 40-2002 rpm |
| Volume Maximum | 25 L (6.5 US Gallons) |
| Viscosity Maximum | 15,000 mPas (15,000 cP) |
| Torque Maximum | 70 Ncm (6 in-lbs = 100 in-oz) |
| Output Power | 40 Watts (1/18 hp) |
| Speed Display | Yes |
| Speed Accuracy | ± 1 rpm or ± 3% of reading |
| Torque Display | No |
| Zero Torque | No |
| Timer | No |
| Through Shaft | Yes |
| Chuck Maximum Shaft Diameter | 10 mm (⅜ in) |
| Chuck Guard | Available |
| Rotation Direction | Clockwise only |
| Housing | Epoxy-coated zinc |
| Weight | Power Supply: 0.5 kg (1 lb), Stirrer: 3.0 kg (7 lb) |
| IP Rating | IP42 |
| Voltage | 120 volt/230 volt |
| Frequency | 50/60 Hz |
| Ambient Temperature Operation | 5-40 °C (41-104 °F) |
| Relative Humidity Operation | 80 % |
| Approvals | CSA listed to Canada and US standards |
| Warranty | 3 years |
