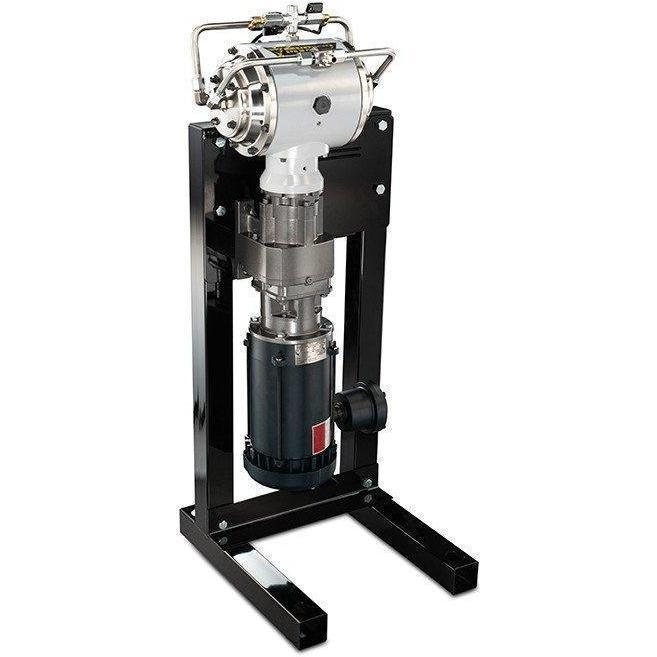

Master Vapor MVP150 Explosion Proof Recovery Pump Standard 150

$ 12,960.00

The Master Vapor Pump Model MVP-150-1PH is a certified gas recovery pump designed to operate at 150 PSI. This pump is designed specifically for LP-Gas vapor recovery and is ideal for butane or butane/propane mixtures.  Please note that the standard Single Phase and Three Phase models are UL Certified and that the ATEX Three Phase is CE Certified

Engineering Specifications:

  • Recover LP-Gas vapor at OVER 6 CFM (cubic feet per minute)
  • Recover 70/30 at up to 1.5 LB/MIN (pounds per minute)
  • Recover 70/30 at OVER 18 GPH (gallons per hour)
  • Electric motor: explosion-proof for C1D1 hazardous areas; rated Class I Gr C & D, Class II Gr F&G Electric motor: 2 HP, 3600 RPM, 60 HZ
  • Pump speed: 220 CPM (cycles per minute) at 60 HZ
  • Size: 17.0” x 19.9” base x 46” tall
  • Weight: 182.5 lb (82.8 kg)

Compliance Details:

  • Compliant with NFPA and UL standards for C1D1 motors and LPG vapor recovery
  • Meets Class 1 Division 1 hazardous area facility requirements (when installed correctly)
  • One year manufacturer’s warranty (see Operation Manual)
  • Made in the USA





      Phase Option
      1 in stock
