Julabo CORIO CD-BC4 150°C 4.5L Capacity Heating Circulator

SKU: 3211009
$ 2,722.00

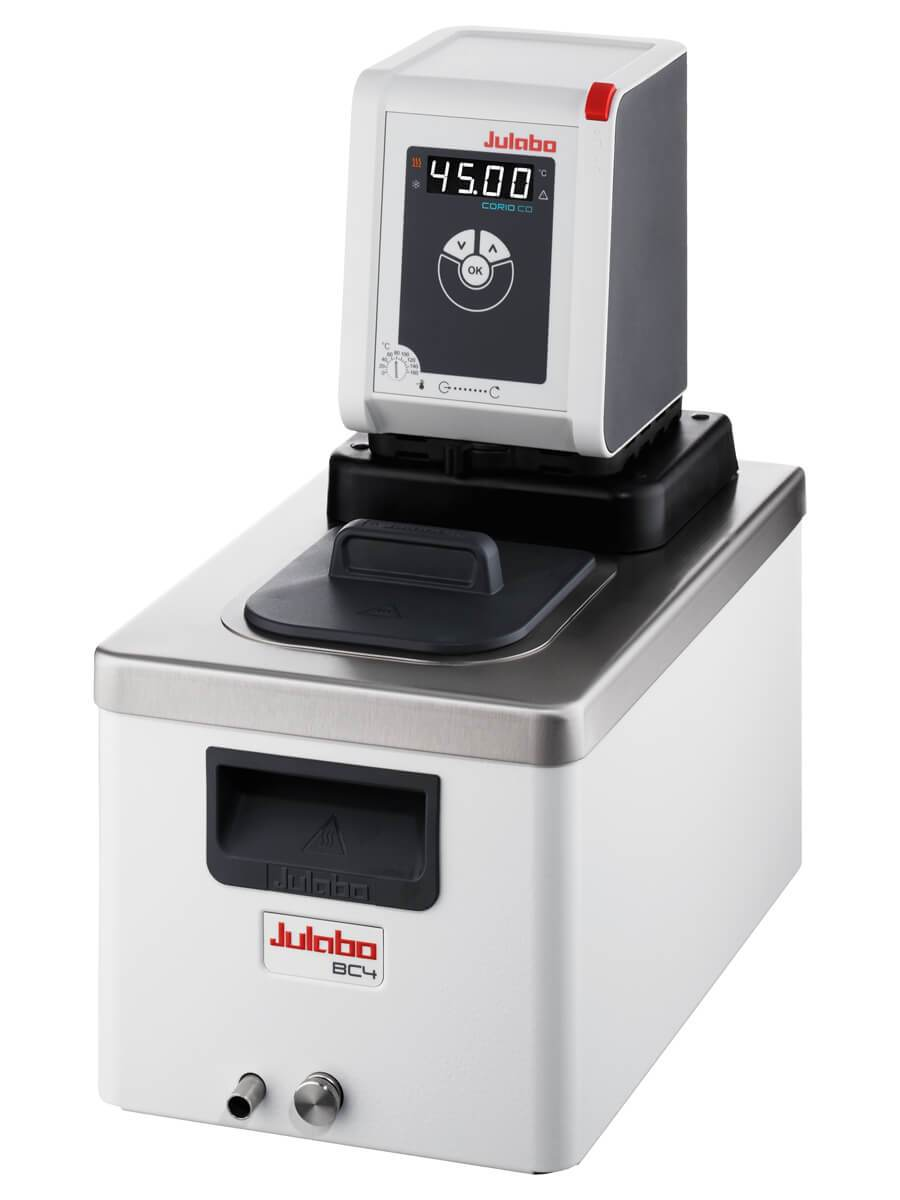

CORIO CD-BC4 Heating Circulator

The new generation of laboratory circulators for routine work and standard tasks

CORIO™ heating circulators feature professional technology for high standards. These units facilitate internal temperature control in the bath tank or control of externally connected applications.

Product Features

  • Models for internal and external applications
  • Bright, white, easy-to-read display
  • Very quiet operation
  • Easy pump change-over between internal and external circulation
  • USB connection
  • High-quality bath tanks made of stainless steel with bath lid and drain tap
  • Integrated cooling coil for counter-cooling

Technical Data

Order No. 9012504
Model Series CORIO
Category Heating Circulators
Working Temperature Range +20 ... +150 °C
Temperature Stability ±0.03 °C
Setting / Display Resolution 0.1 °C
Temperature Display LED
Heating Capacity 1 kW
Pump Capacity Flow Rate 15 L/min
Pump Capacity Flow Pressure 5.08 psi
Bath Opening / Bath Depth
W × L / D 		5.1 × 5.9 / 5.9 in.
Pump Connections M16×1
Barbed Fittings Diameter
Inner Diameter 		8 / 12 mm
Filling Volume 3 ... 4.5 L
Ambient Temperature 5 ... 40 °C
Dimensions
W × L × H 		9.1 × 16.2 × 16.6 in.
Weight 19.4 lbs
Included with Each Unit 2 barbed fittings suitable for tubing 8 and 12 mm inner diameter (pump connections M16×1 male)
Cooling Coil Integrated
Bath Tank Stainless steel
Bath Cover Integrated

Available Voltage Versions

  • 230 V / 50 Hz
  • 208 V - 230 V / 60 Hz
  • 115 V / 60 Hz
