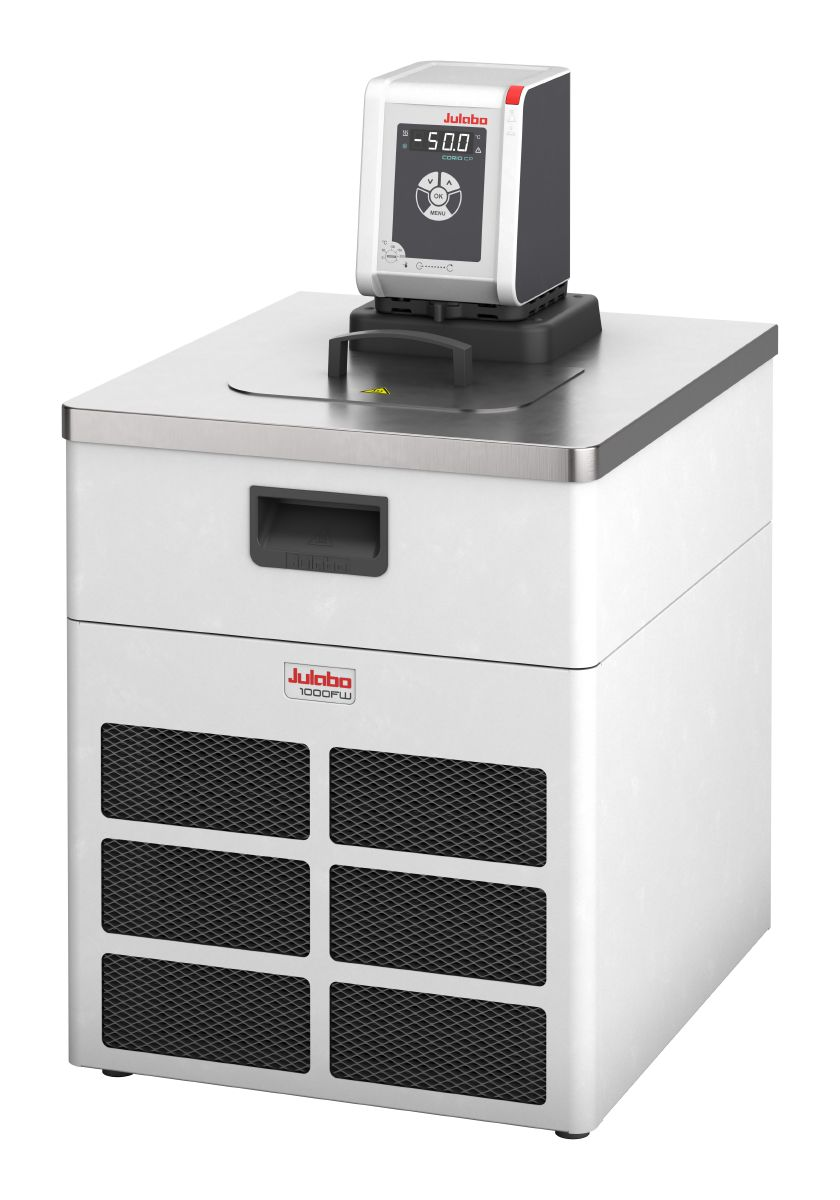

Julabo Corio CP-1000F -50C +200C Refrigerated/Heating Circulator
CORIO CP-1000F Refrigerated / Heating Circulator
w/ Enhanced Pump Performance & Temperature Range Up to +200 °C
Refrigerated circulators from the CORIO CP range are suitable for applications with a temperature range up to +200°C. The enhanced pump performance ensures they are suitable for easy temperature control tasks in combination with external applications.
Product Features
Models for internal and external applications
Bright, white, easy to read display
Very quiet
Easy pump change-over between internal and external circulation
External pump connections
Powerful and infinitely adjustable pressure pump
USB connection
RS232 interface for online communication
Space-saving cooling coil design provides more usable space in the bath tank
Bath lid and drain tap included
Removable ventilation grid
Refrigeration unit without side vents
Unique early warning system for low liquid level
Class III (FL) according to DIN 12876-1
| Order No. | 9013707.02 | |||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Working temperature range | -50 ... +200 °C | |||||||||||||||||||||||||||
| Temperature stability | ±0.03 °C | |||||||||||||||||||||||||||
| Heating capacity | 1 kW | |||||||||||||||||||||||||||
Cooling capacity
* Performance specifications measured in accordance with DIN12876. Cooling capacities up to 20 °C measured with ethanol; over 20 °C with thermal oil unless otherwise specified. Performance specifications apply at an ambient temperature of 20 °C. Performance values may differ with other bath fluids.
| ||||||||||||||||||||||||||||
| Pump capacity flow rate | 8 ... 27 l/min | |||||||||||||||||||||||||||
| Pump capacity flow pressure | 1.5 ... 10.2 psi | |||||||||||||||||||||||||||
|
Usable bath opening (W x L / D) |
7.1 x 5.1 / 5.9 in. | |||||||||||||||||||||||||||
| Filling volume | 5 ... 7.5 l | |||||||||||||||||||||||||||
|
Dimensions (W × L × H) |
16.5 x 19.3 x 29.1 in | |||||||||||||||||||||||||||
