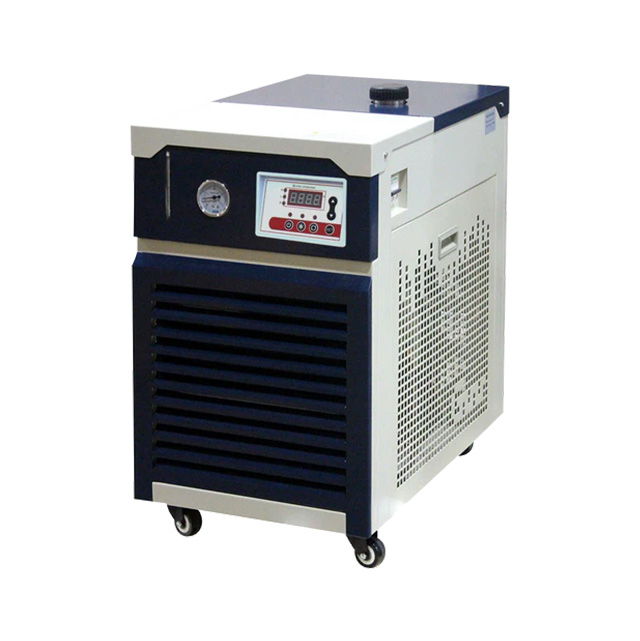

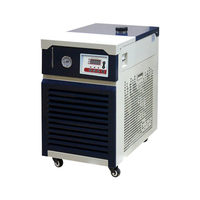

C30-10-5L -30C Recirculating Chiller UL/CSA - 220V
Ai C30 series recirculating chillers are true thermostatic-control laboratory chillers. These closed laboratory chillers are ideal for applications such as cooling rotary evaporators, analytical instrumentation, laser etching, ICP, vacuum systems, plasma etching, and jacketed reactors. This system can also be used as a replacement for tap-water cooling in laboratory applications.
Ai C30 chillers are compressor-based recirculating chillers that offer strong performance, high reliability, quiet operation, and ease of use. A powerful force/suction pump provides constant flow rates, while a microprocessor PID controller provides precise temperature control and cooling below ambient temperature.
C30 Circulating Chiller Features
- ETL tested to UL and CSA standards
- No dry ice or liquid nitrogen needed
- Advanced PID digital temperature controller
- Built-in chilling fluid filter protects the recirculating pump and helps prevent blockage
- All-steel construction for durability
- Cost savings by eliminating water consumption
- Built-in casters for mobility
- Eco-friendly R410A refrigerant
- Insulated tubing included
- Recommended for 5 L rotary evaporators
Specifications
| Model | C30-10-5L |
| Temperature Range | +5°C to -30°C (no load) |
| Electrical Requirements |
220V, 60Hz, 1-Phase, 1,100 watts Not compatible with 50Hz power |
Cooling Capacity
Assuming a working environment of 25°C / 77°F
| 32°F / 0°C | 1,250 W |
| 14°F / -10°C | 800 W |
| -4°F / -20°C | 300 W |
| -22°F / -30°C | 150 W |
Compressor
| Make | Panasonic |
| Power | 208–230V, 60Hz, 1-Phase |
| Number of Compressors | One |
| Refrigerant | R410A |
Recirculating Pump
| Type | Centrifugal |
| Output | 100 watts |
| Pumping Speed | 20 L/min / 5.3 gal/min |
| Maximum Head | 20 ft / 6 m |
| Maximum Pressure | 5.8 psi |
| Coolant Outlet Pressure | Displayed on the built-in mechanical pressure gauge |
Reservoir
| Material | Type 304 stainless steel, polished |
| Chilling Fluid Connection | 3/8" hose barb × 2 |
| Capacity | 10 L / 2.6 gal |
Temperature Control
| Controller Type | Digital microprocessor PID controlled |
| Display Unit | Celsius °C |
| Temperature Accuracy | ±2°C |
| Temperature Range | Ambient to -30°C |
| Temperature Sensor Type | Pt100 |
Additional Specifications
| Housing | Powder-coated type 42 stainless steel |
| Recommended Coolant |
For 50°F / 10°C or higher: distilled water Between 50°F / 10°C and -22°F / -30°C: 50% ethylene glycol + 50% distilled water |
| Working Environment | 5°C to 30°C, at <70% humidity |
| Built-in Swivel Casters | Four |
|
Unit / Shipping Dimensions W × D × H |
26.5 × 17 × 27 in. / 32 × 22 × 36 in. |
| Unit / Shipping Weight | 155 lbs / 210 lbs |
| Safety |
Compressor over-temperature protection Compressor delay-start protection Short-circuit and ground protection Over-current protection |
| Recommended for Rotary Evaporators | Ai 5 L SolventVap rotary evaporators |
| Warranty | One year |
| Compliance |
UL 61010-1:2012 Ed.3 + R:29Apr2016 CSA C22.2#61010-1:2012 Ed.3 |
