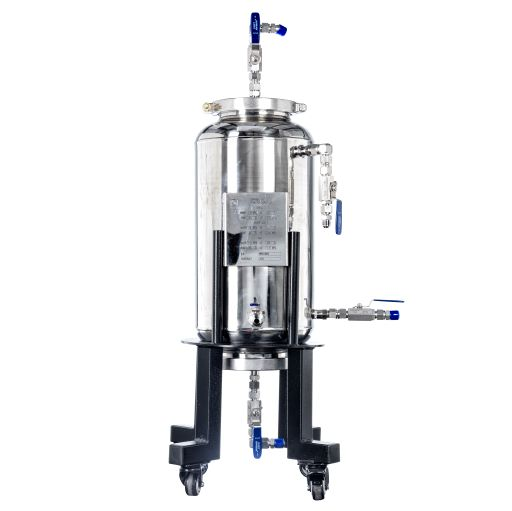

ASME Modular HX Stand Combo | 1/2" Compression (Assembled)

$ 3,000.00

Xtractor Depot's heat exchanger stand combo provides a mobile solution for your injection or recovery lines. Intended for versatile lab setups and easy access.

Only for use with Xtractor Depot's ASME Modular HX. The heat exchanger and stand both come assembled and ready to use.


HX Features:

  • Compression Ports

  • Vacuum Jacket


Stand Features:

  • Four 360 Degree locking caster wheels

  • Powder-coated finish


HX Specifications:

ASME Certified

Made of SS 304L

90ft of 1/2" Coil

8" x 17" Jacketed Spool (10" x 21" jacket)

3mm thickness on spool and jacket

1.65mm thickness on coil tube

Dimensions: 18" Width x 16" Depth x 35" Height

Weight: 90lbs


Stand Specifications:

Dimensions: 13" Width x 13.5" Depth x 21" Height

Weight: 8lbs


4 in stock
