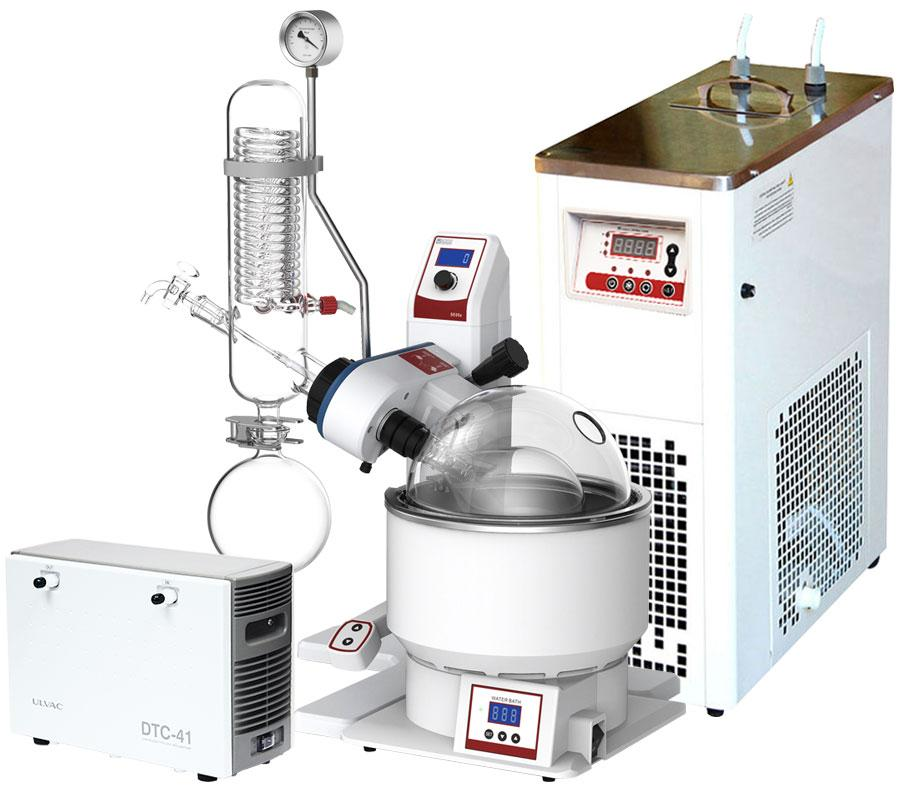

Ai SolventVap 2L Rotary w/ Chiller and Pump 110V
Ai SolventVap 2L (evaporating flask capacity) series rotary evaporators come with a modular heating bath, vertical glassware, and digital temperature/rotation control. Its optimized bath volume allows for rapid heat-up times. The condenser unit has specially designed glass tubes that utilize surface area extremely efficiently. That’s why our SolventVap evaporators consistently deliver reliable and reproducible process results that are usually reserved for more costly systems. Another important aspect of the SolventVap is the safety features, which includes dry-run protection, water bath over-temperature shut-off protection, and fuse protection
Features
ETL tested to UL and CSA standards
New electric evaporator flask lift, nonexposed water bath heater, and plexiglass bath cover, standard
Solvent-resistant PTFE and Viton gaskets ensuring long-time operation.
Specialized motor with extremely compact, intermeshed worm and worm gear provides precise driving for very quiet, vibration-free operation.
Downward-condensing vacuum connection design ensures safe vacuum operation.
Modular design (individual rotary and water bath modules) for easy future upgrades.
Easy, straightforward visual operation with digital speed and temperature display.
PID temperature controller ensures accurate temperature control is maintained.
Specifications
Electrical requirements: 110V 60Hz 1~phase, 1,340 watts (heater: 1,300 watts, rotation motor: 40 watts)
Glass material: High borosilicate glass 3.3
Compliance: ETL tested to UL and CSA standards
Evaporating flask
Capacity: 0.13 gallon (0.5L), 0.26 gallon (1L) or 0.53 gallon (2L)
Maximum load: Not to exceed 60% of the flask's capacity
Rotation speed: 10 to 280 rpm
Evaporating speed: 20 ml per minute
Lifting: weight balancing manual control with lock
Max lifting distance: 4 inches (extendable to 10 inches)
Receiving flask
Capacity: 0.26 gallon (1L)
Condenser
Glassware: Vertical with dual-spiral glass tubing
Chilling fluid connection: 3/8" hose barb x 2
Vacuum connection: 3/8" hose barb x 1
Condensing surface: 1,260 cm2 or 1.4 sq ft
Water bath
Temperature range: ambient to 95°C
Temperature controller: digital
Capacity: 6.5 L
Material: stainless steel
Dimensions: 10" diameter x 5" depth x 9.75" height
Media: distilled water only
Max. water level: not to exceed 1" from the top rim of the bath
Number of heaters: one
Vacuum
Connection: 3/8" hose barb x 1 (on condenser)
Sealing: PTFE + Viton gaskets
Ultimate vacuum: < 3 torrsm
Additional
This product is drop shipped and the delivery time will vary depending on availability.
