CORIO CP-300F 230V/60Hz Refrigerated/Heating Circulator with CSA C22.2 and UL 61010-1 NRTL approvals

SKU: 3131009
$ 7,324.00

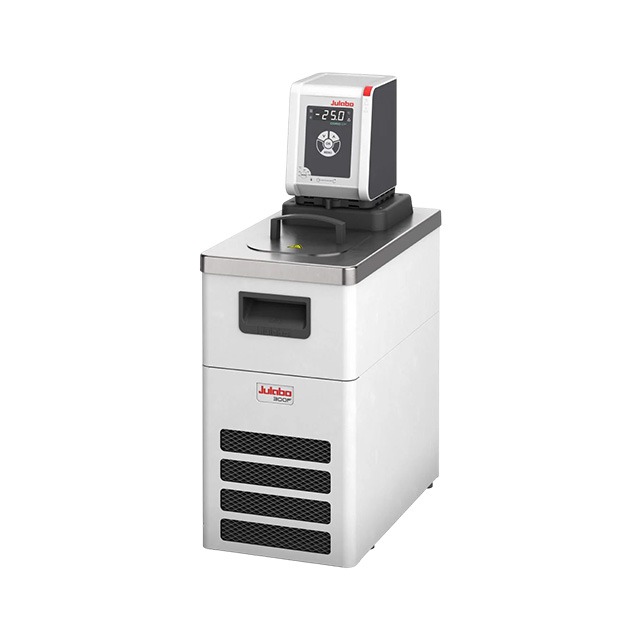

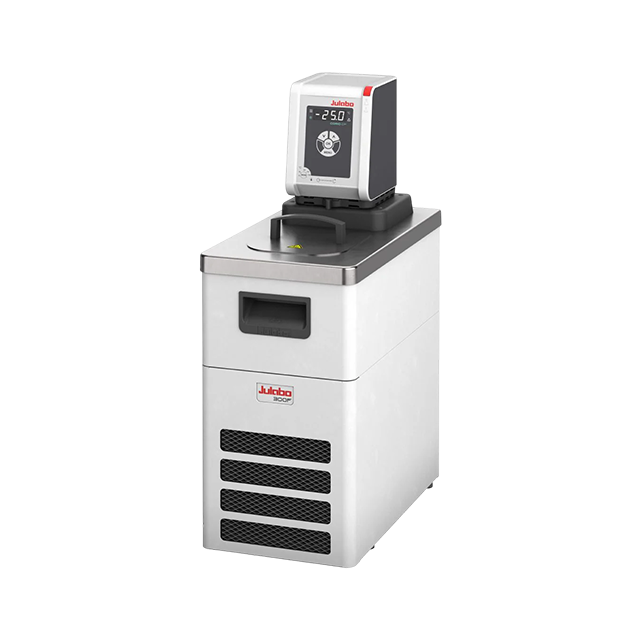

CORIO CP-300F Refrigerated / Heating Circulator

with an enhanced pump performance and a temperature range up to +200 °C

Refrigerated circulators from the CORIO CP range are suitable for applications with a temperature range up to +200°C. The enhanced pump performance ensures they are suitable for easy temperature control tasks in combination with external applications.

Product Features

  • Models for internal and external applications

  • Bright, white, easy to read display

  • Very quiet

  • Easy pump change-over between internal and external circulation

  • External pump connections

  • Powerful and infinitely adjustable pressure pump

  • USB connection

  • RS232 interface for online communication

  • Space-saving cooling coil design provides more usable space in the bath tank

  • Bath lid and drain tap included

  • Removable ventilation grid

  • Refrigeration unit without side vents

  • Unique early warning system for low liquid level

  • Class III (FL) according to DIN 12876-1


CP-300F
Order No. 9013703.02
Working temperature range -25 ... +200 °C
Temperature stability ±0.03 °C
Heating capacity 1 kW
Cooling capacity
Medium: Ethanol
°C 20 10 0 -10 -20
kW* 0.3 0.3 0.27 0.19 0.08
Refrigerant R134a
Global Warming Potential 1430
Filling volume 100 g
Carbon dioxide equivalent 0.143 t
* Performance specifications measured in accordance with DIN12876. Cooling capacities up to 20 °C measured with ethanol; over 20 °C with thermal oil unless otherwise specified. Performance specifications apply at an ambient temperature of 20 °C. Performance values may differ with other bath fluids.
Pump capacity flow rate 8 ... 27 l/min
Pump capacity flow pressure 1.5 ... 10.2 psi
Usable bath opening
(W x L / D) 		5.1 x 5.9 / 5.9 in.
Filling volume 3 ... 4 l
Dimensions
(W × L × H)

9.4 x 16.5 x 26 in.
