CORIO CP-BC4 200-230V/50-60Hz Heating Circulator with CSA C22.2 and UL 61010-1 NRTL approvals

SKU: 3131008
$ 4,271.00

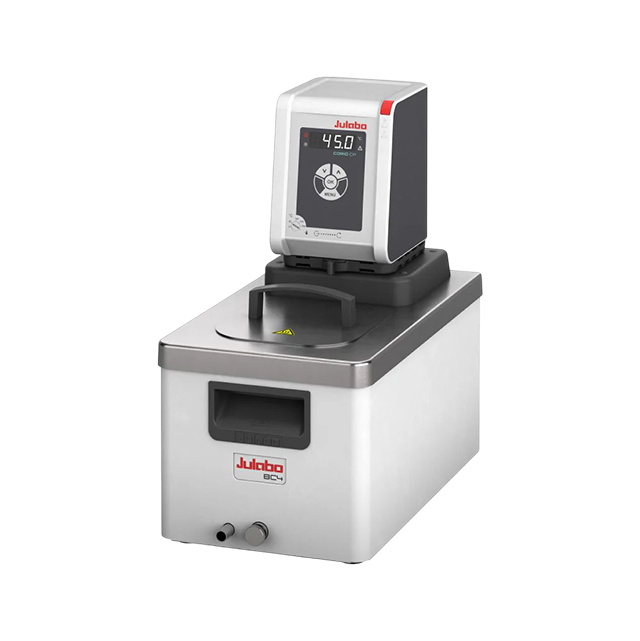

CORIO CP-BC4 Heating Circulator

Laboratory circulators with an expanded working temperature range up to +200 °C

In addition to the advantages of the CORIO C circulator, the CORIO CD and CP immersion circulator can be equipped with an optional pump set for temperature control of external applications.

Product Features

  • Models for internal and external applications

  • Bright, white, easy to read display

  • Very quiet

  • Easy switching between internal and external circulation

  • Powerful and infinitely adjustable pressure pump

  • USB connection

  • RS232 interface for online communication

  • High-quality bath tanks made of stainless steel with bath lid and drain tap

  • Integrated pump connection M16×1

  • Unique early warning system for low liquid level

  • Integrated cooling coil for counter-cooling

  • Precise temperature control

  • Easy pump change-over between internal and external circulation


CP-BC4
Order No. 9 013 504
Working temperature range +20 ... +200 °C
Temperature stability ±0.02 °C
Heating capacity 1 kW
Pump capacity flow rate 8 ... 27 l/min
Pump capacity flow pressure 1.5 ... 10.2 psi
Usable bath opening
(W x L / D) 		5.1 x 5.9 / 5.9 in.
Filling volume 3 ... 4.5 l
Dimensions
(W × L × H) 		9.1 x 16.1 x 16.5 in.

For applications near or below ambient temperature: use a cooling coil or JULABO immersion cooler.
