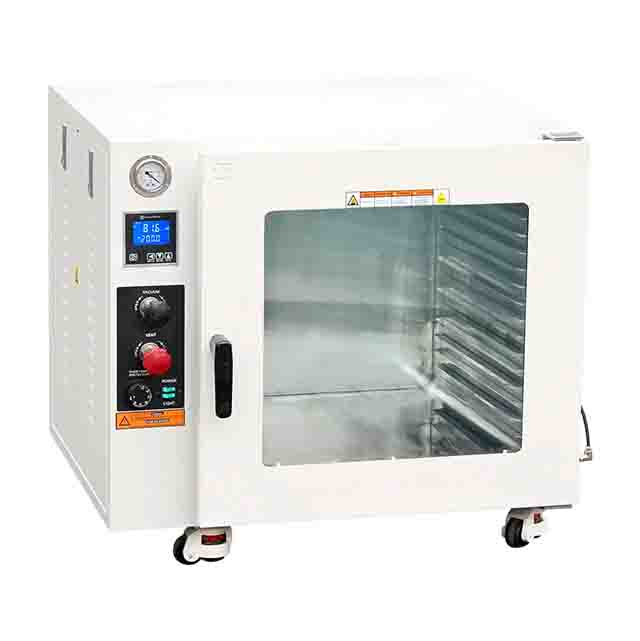

This Ai 14-shelf capacity 5 sided wall-heating 5.0 cu ft vacuum ovens, comes standard with secondary over-temp protection dial, stainless steel tubing, stainless steel vacuum & vent valve, oil-filled vacuum gauge, and two-year warranty.
Specifications
Electric: 110V or 220V +/-10% 50/60Hz 1-PH, 3,000 watts
Chamber Size: 19.75 x 21.5 x 19.75", Material: Stainless steel, Capacity: 5.0 cubic feet
Heater: 5-sided heating (left 600W, right 600W, top 600W, bottom 600W, back 200W x 3)
Temperature Controller: low proportional gain, microcomputer PID controlled with LCD display, Range: ambient to 250° (or 480°F), Display units: Fahrenheit or Celsius, Uniformity: +/- 7% of setpoint, Dwelling timer range: 1 to 9999 minutes, Warm-up time to 100°F: 45 minutes, Warm-up time to 480°F: 2 hours 15 minutes
Vacuum: Ultimate vacuum level: better than 500 microns/millitorrs, (may vary based on your altitude, click here to learn more), Mechanical gauge range: 0 to 30 inch mercury, Vacuum port: KF25 flange, Vent port: KF25 flange, Vacuum pump: Sold separately,
Weight Unit: 410 Lbs, shipping: 630 Lbs
Dimensions (WxDxH) Unit: 32.25 x 28 x 30"
Shipping: 38 x 37 x 38"
Shelves: Shelf size: 19.25 x 21 x 0.5" (WxDxH), Material: aluminum, Style: pan-shape, Capacity: 14 shelves max. Comes standard with oven purchase: 7 shelves, Total area with 14 shelves: 39.3 sq ft or 5660 sq inch, Distance between the most adjacent shelves: 1.25",
Door gasket material: Silicone or Viton
Observation window: 1/2" tempered safety glass
Safety: Built-in circuit breaker, Overheat shutoff protection, Secondary over-temp protection dial
In-door lights: White LED (pre-installed)
Compliance: ETL certified to UL and CSA standards
