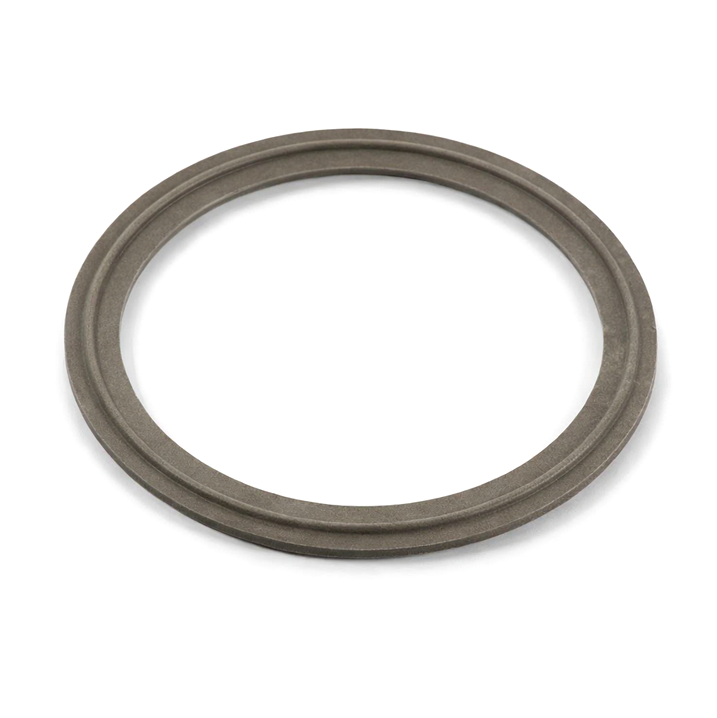

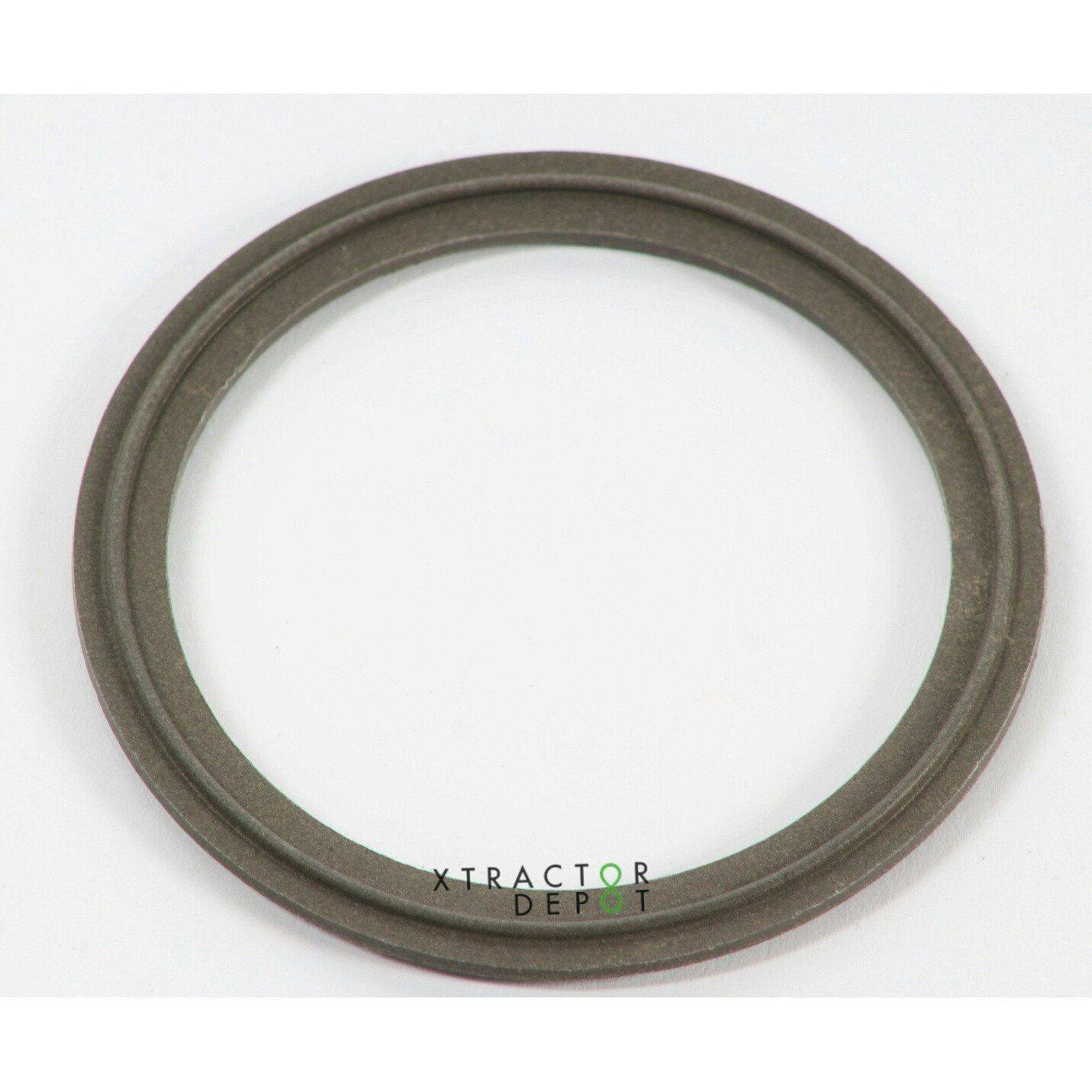

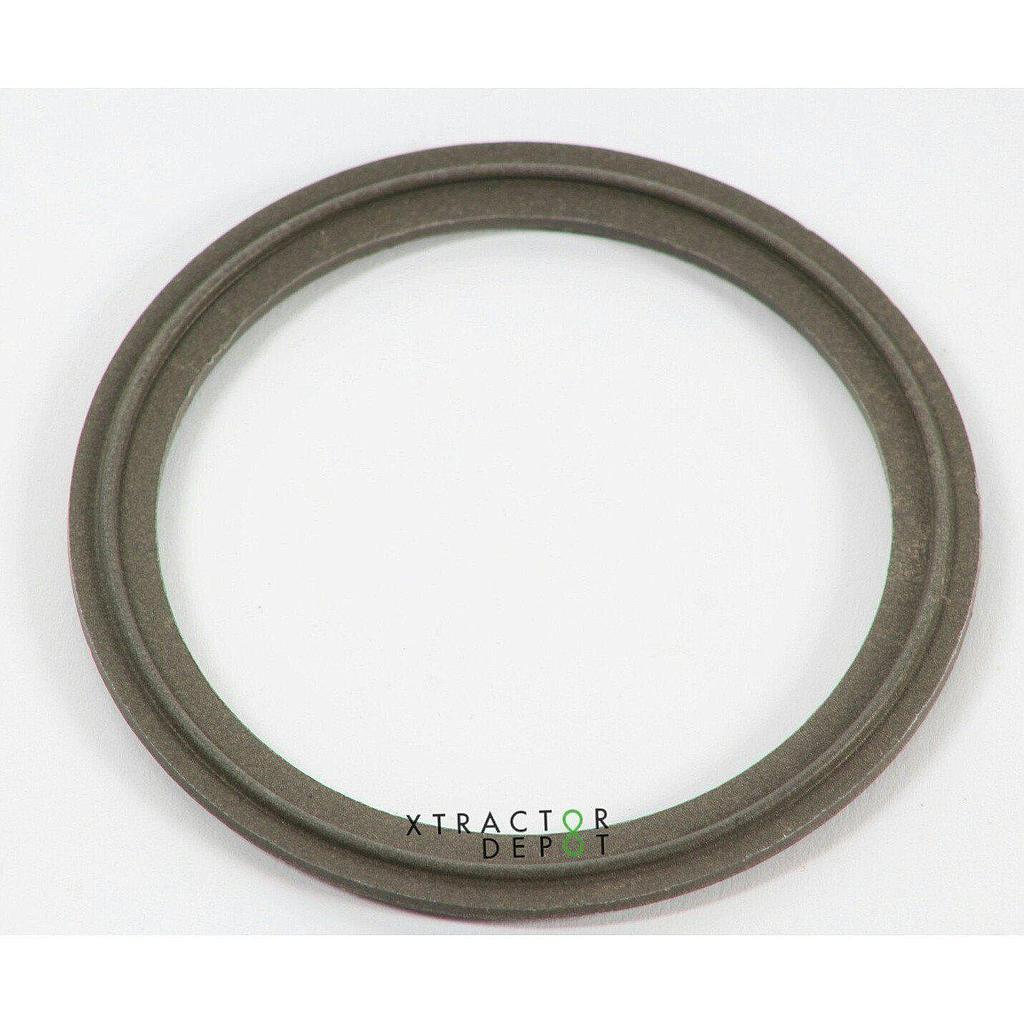

Tuf Steel Tri-Clamp Gasket (UNFLANGED)

Product Overview

Brand: Rubber Fab
Color: Grey
Material: Tuf-Steel®
Style: Tri-Clamp®
Type: Type I (Unflanged Gasket)
Temperature Rating: -350°F to 550°F

SOLD INDIVIDUALLY

Description

Rubber Fab’s Tuf-Steel® Sanitary Tri-Clamp® Gaskets are the preferred solution for applications requiring exceptional purity, long service life, chemical resistance, and extreme temperature performance. When properly torqued, Tuf-Steel® gaskets provide a 100% leak-free seal with minimal creep and cold flow.

Tuf-Steel® is a proprietary blend of non-pigmented PTFE (Teflon®) and water-atomized, passivated 316L stainless steel. The result is a non-stick, ultra-low absorption gasket material capable of maintaining seal integrity through severe temperature fluctuations.

These gaskets perform reliably in a service temperature range of -350°F to 550°F. For optimal performance, the use of a Torque-Rite® Clamp Nut is recommended.

Performance & Reliability

Tuf-Steel® is the original metal-detectable gasket material and has always been detectable by metal detectors and magnetic separators. Over a decade of documented use confirms its superior durability, surface performance, and extended service life in demanding SIP (Steam In Place) and WFI (Water For Injection) applications.

Unlike envelope gaskets, Tuf-Steel® will not revert under stress, eliminating cold flow and creep while maintaining a leak-free seal in extreme temperature and sanitary steam processes.

Made in the USA

Key Features

• Temperature range: -350°F to 550°F
• Metal detectable
• Non-pigmented, non-stick surface
• Minimal cold flow and creep
• 500 CIP/SIP cycles guaranteed
• Excellent chemical resistance
• Compression controlled gasket design
• No gasket extrusion into sanitary tube ID
• No obstruction of flow
• Ideal for SIP and WFI applications
• Rouging eliminated

Storage & Shelf Life

• Shelf Life: 20 years from cure date
• Store in original packaging
• Keep in a clean, dry warehouse
• Avoid direct sunlight
• Store more than 6 feet from electric motors
• Maintain storage temperature between 65°F and 85°F

Standards & Compliance

• FDA CFR 21, 177.1550
• USP Class VI Certified
• USDA HACCP
• USDA and 3-A Sanitary Standards
• ASME-BPE (Type I & II)
• ADI Free® (Animal Derived Ingredient Free)
• CGMP Compliant

Available Tuf-Steel® Configurations

• Type II Flanged Tri-Clamp® Gaskets
• Screen Gaskets
• Sock Gaskets
• Orifice Plate Gaskets
• Gauge Guards
• O-Rings
• ANSI 150# & 300# Flange Gaskets
• Bevel Seat, I-Line, Q-Line, DIN/ISO Gaskets
• X-Ray Detectable Materials
• Sheets, Rods, and Custom Profiles
