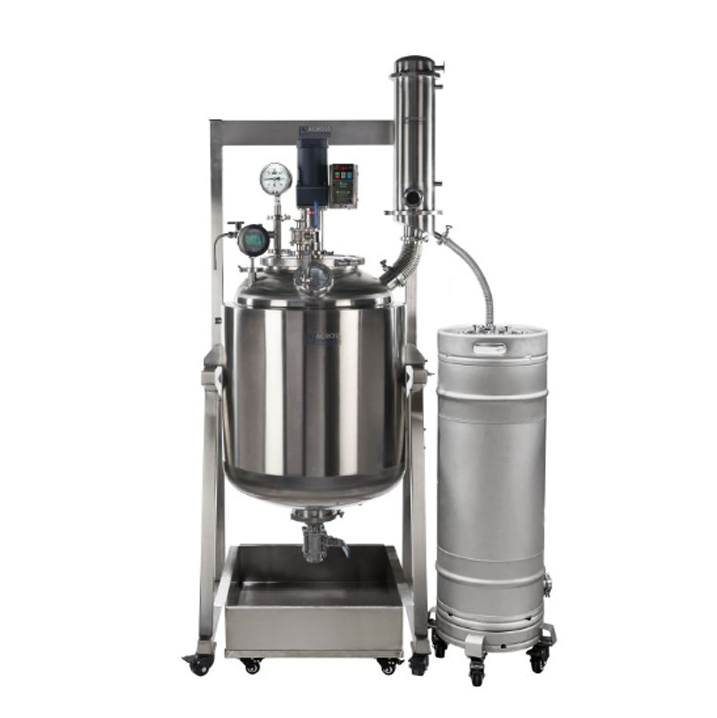

Ai Dual-Jacketed 200L 316L-Grade Stainless Steel Reactor

Ai 316L Grade Stainless Steel Reactor Features

• Dual jacketed. Sealed outer insulation jacket provides best temperature performance inside chamber
• All wetted parts on main vessel and lid built with pharmaceutical grade 316L SST
• Shell and tube heat exchanger with 70 tubes for the best condensing results
• ElectroPolished internal chamber
• Greatly reduces surface roughness by leveling micro-peaks and valleys
• Improved vacuum pressures, out-gassing rates, and pumping speed
• Prolong equipment lifespan by reducing friction and wear
• Much better sterilized and semiconductor grade surface
• Essential for the food and pharmaceutical industries
• https://hollandaptblog.com/2014/03/20/what-is-electropolishing-and-why-is-it-so-important-in-the-pharmaceutical-industry
• Detachable condenser and collection tanks

• Dual collection tanks with big sight glass allows you to drain without breaking vacuum
• High drain port clearance for easy draining or added filtration
• Large ports (top 12" bottom 6") allows easy chamber cleaning
• Top placed vacuum port on condenser provides better flow and condensing results
• No messy cable, with space saving integrated stirring motor controller
• Heavy-duty stainless-steel frame with swivel casters
• Built-in flashlight gives you a clear view inside the chamber
• Positive/negative pressure gauge
• Matte finish stainless steel
• Customizable lid for various application
• Tons of tri clamps adapters available, e.g. tri clamp to hose barb/KF25/NPT
• Choice of bolted or pin clamp for various pressure applications
• Flexible bellow condenser connection reduces shipping damage
• Electric motor and controller model is ETL certified to UL and CSA standards
