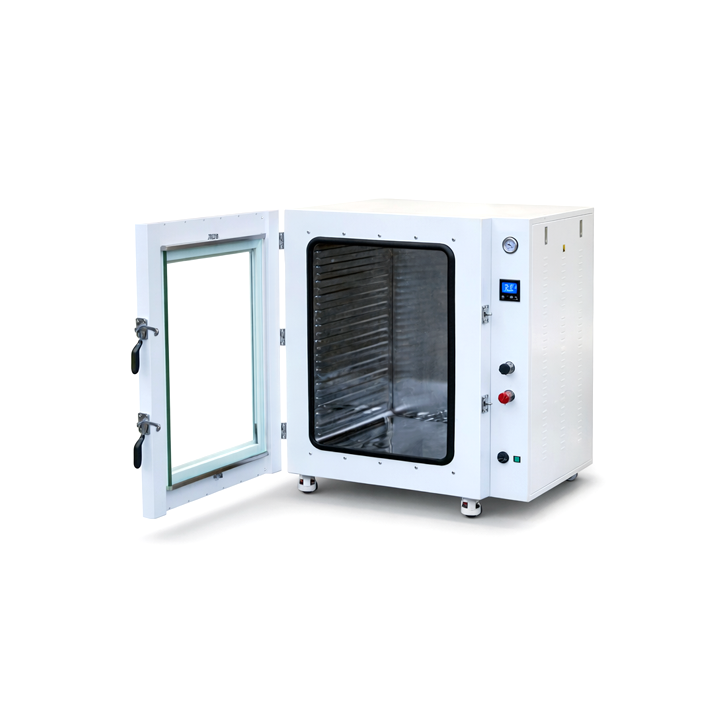

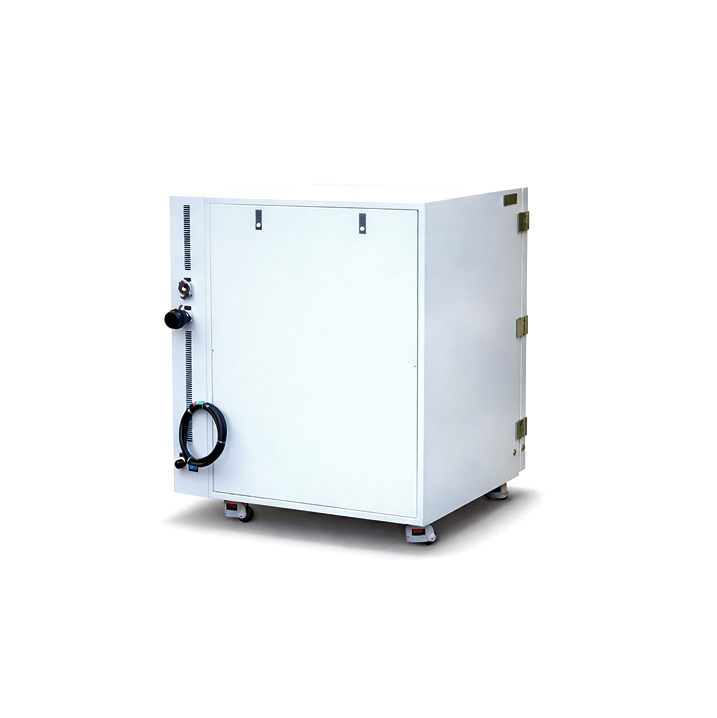

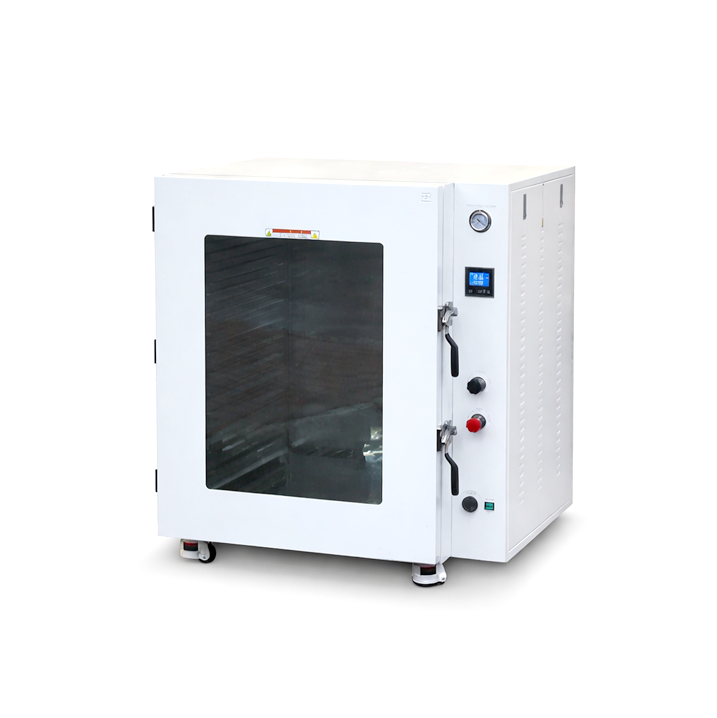

316L SST Grade Chamber 250C 26 Shelf Max 16 CF 5 Sided Heating Vacuum Oven 220V ETL

AT Series Vacuum Oven

Vacuum Oven Specifications

Electrical
• Power Requirements: 220V ±10%, 50/60Hz, Single Phase
• Current Draw: 27.3A
• Total Power: 6,000W

Chamber
• Internal Dimensions: 25.6" W × 30" D × 35.5" H
• Material: Stainless Steel
• Capacity: 16 cubic feet

Heating System
• Heater Layout: 5-sided heating
• Total Wattage: 6,000W

Power Distribution
• Left: 860W × 2
• Right: 860W × 2
• Top: 400W
• Bottom: 840W
• Back: 330W × 4

Temperature Control
• Controller: Microcomputer PID controller with LCD display (low proportional gain)
• Temperature Range: Ambient to 250°C (480°F)
• Display Units: Fahrenheit or Celsius
• Temperature Uniformity: ±7% of setpoint
• Dwell Timer Range: 1–9,999 minutes

Heating Performance
• Ambient to 100°C: ~40 minutes
• Ambient to 150°C: ~1 hour
• Ambient to 200°C: ~2 hours
• Ambient to 250°C: ~2.5 hours

Vacuum System
• Ultimate Vacuum Level: Better than 500 microns (millitorr)
• Note: Performance may vary by altitude
• Mechanical Gauge Range: 0–30 inHg
• Vacuum Port: 1 × KF25 flange
• Vent Port: 1 × KF25 flange
• Vacuum Pump: Sold separately

Shelving
• Shelf Size: 25" W × 30" D
• Material: Aluminum
• Style: Pan-shaped
• Maximum Capacity: 26 shelves
• Included Shelves: 13 (standard)
• Total Surface Area (26 shelves):
89 sq ft
12,857 sq in
• Minimum Shelf Spacing: 1.25"

Construction & Design
• Door Gasket Material: Silicone or Viton
• Observation Window: 1/2" tempered safety glass
• Interior Lighting: White LED (pre-installed)

Safety Features
• Built-in circuit breaker
• Overheat shutoff protection
• Secondary over-temperature protection dial

Dimensions & Weight
• Unit Dimensions (W × D × H): 44" × 38" × 51.5"
• Shipping Dimensions: 50" × 45" × 60"
• Unit Weight: 800 lbs
• Shipping Weight: 1,200 lbs

Compliance & Warranty
• Compliance: ETL tested to UL and CSA standards
• Warranty: 2-year manufacturer warranty
