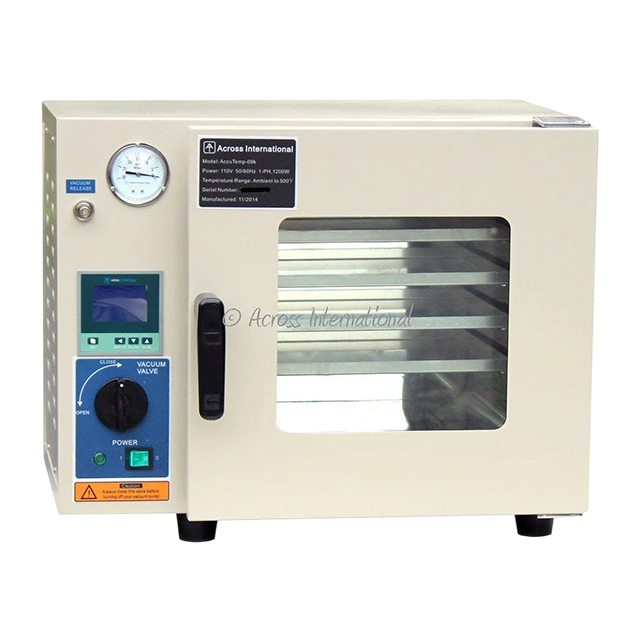

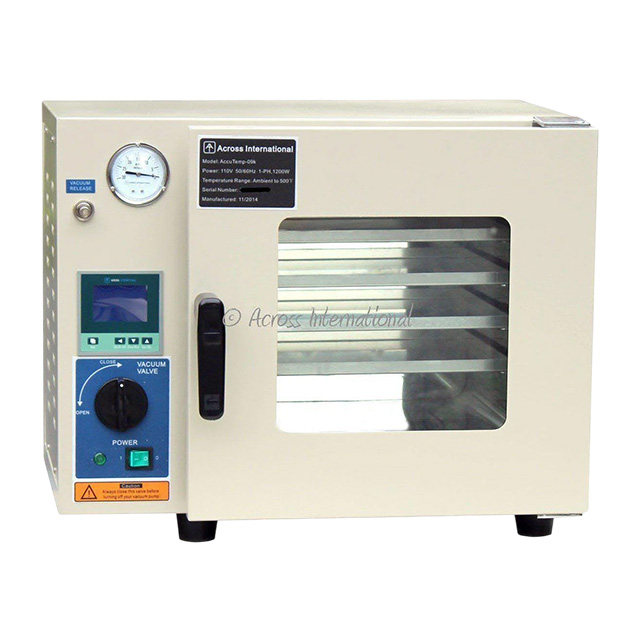

UL/CSA-Certifed AI 0.9 Cu Ft Digital Vacuum Oven

Across International

UL/CSA-Certifed AI 0.9 Cu Ft Digital Vacuum Oven

$ 1,285.19 $ 1,890.00

UL/CSA Certified AccuTemp-09 series digital desktop vacuum ovens feature a 0.9 cubic foot easy-to-clean stainless steel chamber with a large dual-layer tempered glass safety window and small footprint. These ovens can greatly reduce drying time by maintaining a consistent vacuum level within the chamber.

This certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan. Also, come standard are the secondary over-temp protection dial, all stainless steel tubing/compression fittings, stainless steel vacuum/vent valve, oil-filled vacuum gauge, 5 sided pad heating technology and two-year warranty. The thermal-conductive aluminum pan shelves provide excellent temperature uniformity inside the chamber, while our 3rd gen LCD low proportional gain temperature controllers keep your oven temperature within +/- 1°F accuracy, in either °F or °C.

Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is 100% quality controlled in New Jersey or Nevada before leaving our facilities.

 Also come standard is the adjustable gas backfill capability with a needle valve and a vent port, while the low proportional gain temperature controller keeps your oven temperature within +/- 1°F accuracy.

Attention: Before initial use, run the oven at 400°F without vacuum for 15 minutes to burn off any residue that may have been introduced during the manufacturing process.

LED lights color options


Features

  • 3-side heating system (left, right and bottom) and aluminum shelves provide excellent temperature uniformity.
  • 12x12x11"
  • Adjustable gas back fill capability with needle valve and vent port.
  • Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
  • Dual layer observation window with 1/2" tempered safety glass.
  • 3" thermal insulation prevents heat loss and minimizes the enclosure's outer surface temperature.
  • Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
  • Built-in inch mercury vacuum gauge and circuit breaker.
  • Built-in check valve prevents vacuum oil backflow.
  • Built-in alarm alerts you when the oven has been shut down by safety circuitry due to out of range temperature.
  • All ovens shipped from our New Jersey or Nevada location for quick delivery, come with one year warranty and lifetime US-based parts and service support
  • Guaranteed US based phone and email assistance within 30 minutes from our engineers

Manufactured in accordance with

  • ISO 9001:2000
  • ISO 12100-1:2003, ISO 12100-2:2003
  • EN1050:1996, EN294:1992, EN60204-1:2006
  • CE

Vacuum oven specifications

 Electrical requirements
 110V +/-10% 50/60Hz 1-PH 11A (or 220V +/-10% 50/60Hz 1-PH 5.5A)
 Heaters  1200 watts
 Chamber material  Stainless steel
 Temperature controller  3rd gen low proportional gain, microcomputer PID controlled with LCD display
 Temperature range  Ambient to 480°F
 Temperature units  Fahrenheit or Celsius
 Temperature accuracy  +/- 1°F
 Temperature uniformity  +/- 7% of setpoint
 Warm-up time to 100°F
 60 minutes
 Dwelling timer range
 1-9999 minutes
 Chamber dimensions
 12 x 12 x 11" (WxDxH)
 Unit dimensions
 23.4 x 17.25 x 19" (WxDxH). With handle and vacuum port: 23.4 x 20 x 19" (WxDxH)
 Shipping dimensions
 28 x 24 x 24" (WxDxH)
 Vacuum level
 Better than 500 microns/millitorrs
 Maximum vacuum
 29.9" Hg (may vary based on your altitude, click here to learn more)
 Vacuum gauge  0 to 30" Hg
 Vacuum connector
 KF25 flange
 Unit weight  90 Lbs
 Shipping weight  150 Lbs
 Shelves included
 4 aluminum slide-in shelves
 Distance between shelves   2"
 Door gasket material  Silicone
 Observation window  1/2" tempered safety glass
 Safety
 Built-in circuit breaker, overheat protector
