Ai Glacier 27 Cu Ft -86°C Ultra-Low Upright ULT Freezer ETL; 220v 60Hz

SKU: 3211044
Request for quote

The Ai Glacier 27 Cu Ft -86°C ultra-low upright ULT freezer is perfect for large storage of sample and products. Our unique single-compressor design (110V) offers ultra-low power consumption, very low noise, and ease of maintenance.

Features

  • CDC and VFC compliant
  • ETL tested to UL and CSA standards
  • Great for storage of Covid-19 vaccines, DNA, RNA, virus samples, organs, and serum
  • Remote alarm, RS232, 4-20mA transmitter (optional)
  • ETL tested to UL 471, Commercial Refrigeratiors and Freezers standards (optional)
  • Central control with large 7" touch screen LCD display provides you a graph of temperature vs time curve.
  • Wide operation temperature range from -10°C to -86°C
  • All stainless steel interior for clean operation, durability, and ease of maintenance
  • Lock-able door, high or low temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit
  • Dual silicon sealing gaskets for ultra airtight operation
  • 72-hour battery backup for controller
  • USB interface for data export and storage
  • Extremely quiet and reliable
  • Front document holder for handy storage
  • Environmentally friendly refrigerant
  • Use only RoSH compliant non-toxic components and materials
  • Tons of safety functions
  • Built-in swivel casters with adjustable support that will secure the unit on uneven floor
Ai Glacier G27 Ultra-Low Upright Freezer

7" TOUCH SCREEN CONTROLLER

G27 7 Inch Touch Screen Controller

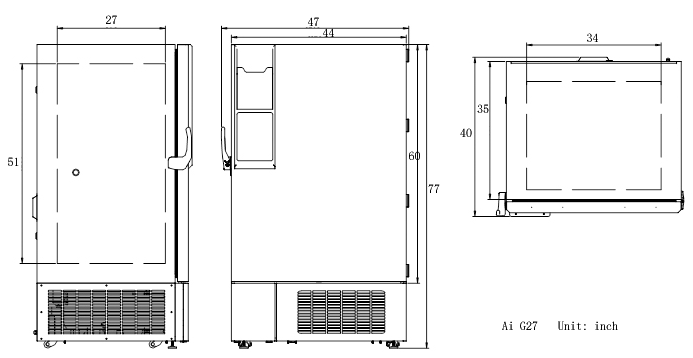

G27 Freezer Dimensions

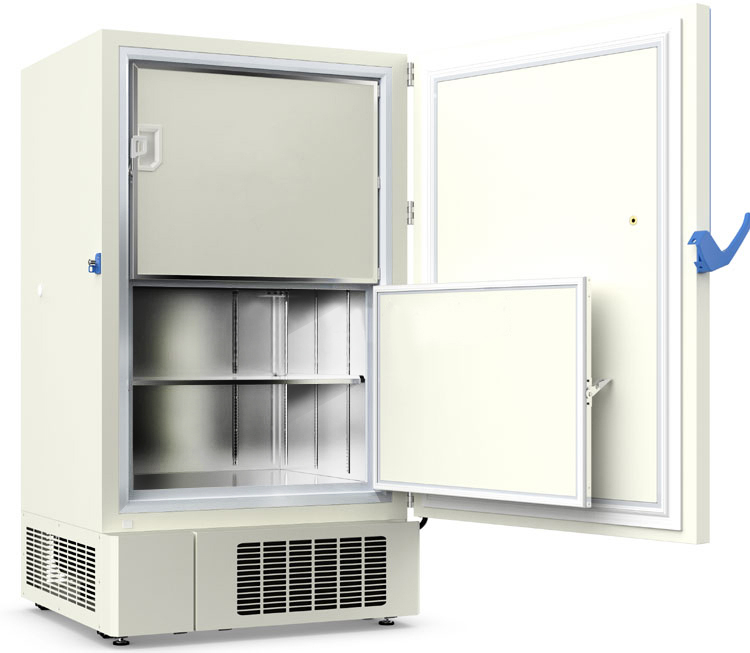

G27 Stainless Steel Interior
G27 Inner Door
G27 Freezer Handle Side View
G27 Freezer Handle
G27 USB Interface
G27 Door Seal
G27 Door Hinge
G27 Freezer Filter
Glacier Temperature Curve
Glacier ETL Certification
Glacier UL 471 Certification

Specifications

Model G27
Electrical Requirements 110V (±10%) 60Hz 1-Phase, 1250 watts 11.4A
or
220V (±10%) 60Hz 1-Phase, 1600 watts 7.3A
NOT compatible with 220V 50Hz power
Temperature Range -10°C to -86°C
Time to Reach -86°C 110V 60Hz model: 8.4 hours
220V 60Hz model: 6.7 hours
Compressor Make: embraco
Power: 110V or 220V, 60Hz, 1-PHASE
Number of compressors:
110V model: one
220V model: two, parallel
Refrigerant: Ai proprietary mixture gases, CFC-free
Chamber Dimensions: 36.5 x 27.5 x 51"
Material: 304 stainless steel
Capacity: 27.1 Cu Ft
Shelf Come with unit: three adjustable shelves (4 compartments)
Material: 304 stainless steel
Capacity: 110 Lbs on three shelves, evenly distributed
450 Lbs on the base of the chamber, evenly distributed
Dimensions: 33 x 26 inches
Additional shelf unit price: $150
Door and Gasket Inner door: two, each with one sealing gasket
External door: one with dual sealing gasket, lock-able
Access Port Two, one on the side and one in the back, one inch diameter
Built-in Swivel Casters Four, with positioners
Noise Level 48 DBA
Communication Remote alarm, RS232, 4-20 mA transmitter (optional)
Working Environment Temperature: 10°C to 32°C (humidity <57% Rh required at 32°C)
Humidity: <80% Rh
Altitude: <2000 m / 6561 Ft
Stable, well-ventilated platform with no excessive dust
Keep freezer at least 12 inches from any walls or ceiling
Use dedicated power, do not share outlet
Extension power cable should be less than 10 feet is required
Freezer and power outlet should be grounded properly
Avoid direct sunlight, water spill and do NOT use freezer outdoor
Clean condenser fins and remove frost inside chamber at least one a month
Unit / Shipping Weight & Dimensions 926 Lbs / 990 Lbs
44 x 39 x 79" / 45 x 52 x 86" (WxDxH)
Safety Compressor over-temp protection
Compressor power surge delay protection
Short circuit and ground protection
Over-current protection
Over-temperature and low-temperature protection
Power failure protection
Low battery, door open, filter clogging, system failure alarms
External door with lock
Compliance UL STD 61010-1 (standard)
CSA C22.2 NO. 61010-1 (standard)
US STD 471 (optional)
Warranty One year

G27 Standard Package

Part Description Quantity Part Image
Ai G27 -86°C ultra-low upright freezer 1 pc Ai G27 Ultra-Low Upright Freezer
Shelf 3 pcs G27 Shelf
Ice scraper 1 pc G27 Ice Scraper
Additional access port inside cap 2 pcs G27 Access Port Caps
Wrench 1 pc G27 Wrench
Door key 2 pcs G27 Door Keys
USB drive with data reading program 1 pc G27 USB Drive
User's manual 1 pc G27 User Manual
