CF40 115V/60Hz Cryo Compact Circulator

SKU: 3821012
$ 8,740.00

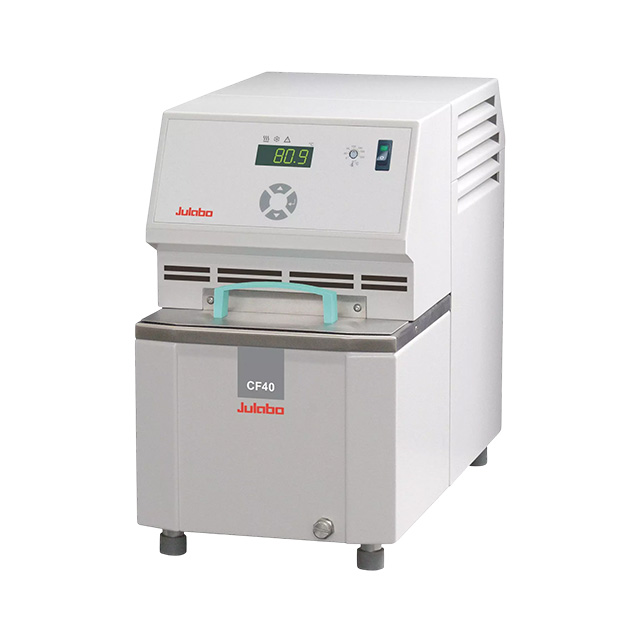

CF40 Cryo-Compact Circulator

The Cryo-Compact Circulators of the CF Series provide powerful cooling and heating capabilities in a space-saving, compact design. The instruments feature heating capability and Classification III according to DIN 12876-1. The Cryo-Compact Circulators have pump connections for external temperature control applications and a bath opening for temperature control of small objects.

CF40 Specifications

Order No. 9 400 340.02
Working Temperature Range -40 ... +150 °C
Temperature Stability ±0.03 °C
Heating Capacity 1 kW
Cooling Capacity
Medium: Ethanol 		20 °C: 0.47 kW
0 °C: 0.40 kW
-20 °C: 0.28 kW
-30 °C: 0.12 kW
Pump Capacity Flow Rate 15 L/min
Pump Capacity Flow Pressure 5.1 psi
Usable Bath Opening
W x L / D 		7.5 x 1.2 / 7.5 in.
Filling Volume 4 ... 5.5 L
Dimensions
W × L × H 		11 x 18.1 x 18.1 in.

Product Features

  • Small overall dimensions for lowest space requirement
  • Splash-proof keypad
  • Large, bright LED display
  • Precise PID temperature control
  • RS232 interface for PC connection
  • Classification 3 according to DIN12876-1
  • Pump connections for external temperature applications
  • Bath opening for temperature control of small objects in the bath
  • Front drain

Dimensions and Volumes

Dimensions
W × L × H 		11 x 18.1 x 18.1 in.
Filling Volume 4 ... 5.5 L
Weight 97 lbs
Pump Connections M16x1 male
Barbed Fittings Inner Diameter 8/12 mm

Temperature Values

Working Temperature Range -40 ... +150 °C
Temperature Stability ±0.03 °C
Temperature Display Resolution 0.1 °C
Ambient Temperature +5 ... +40 °C

Electrical

Data at mains voltage / frequency:
115V / 60Hz (NEMA N5-15 Plug)

Performance Values

Heating Capacity 1 kW
Cooling Capacity
Medium: Ethanol 		20 °C: 0.47 kW
0 °C: 0.40 kW
-20 °C: 0.28 kW
-30 °C: 0.12 kW
Pump Capacity Flow Rate 15 L/min
Pump Capacity Flow Pressure 5.1 psi
Maximum Viscosity 30 cST

Refrigeration

Refrigerant Stage 1 R449A
Global Warming Potential for R449A 1397
Refrigerant Filling Volume 153 g
Carbon Dioxide Equivalent 0.214 t

Bath

Bath Tank Stainless steel
Bath Cover Integrated
Usable Bath Opening
W x L / D 		7.5 x 1.2 / 7.5 in.

Cooling

Cooling of Compressor 1-stage Air

Additional Specifications

Classification
According to DIN12876-1 		Classification III (FL)
IP Code
According to IEC 60529 		IP 21
Pump Type Immersion Pump

Electronics

Temperature Control PID1
Temperature Display LED

Available Voltage Versions

230V / 60Hz NEMA N6-20 Plug 9400340.13
115V / 60Hz NEMA N5-15 Plug 9400340.02
230V / 50Hz Schuko Plug - CEE 7/4 Plug Type F 9400340.03
230V / 50Hz UK Plug Type BS1363A 9400340.04

Included in Delivery

2 barbed fittings for tubing 8 and 12 mm ID. Pump connections M16x1 male.
