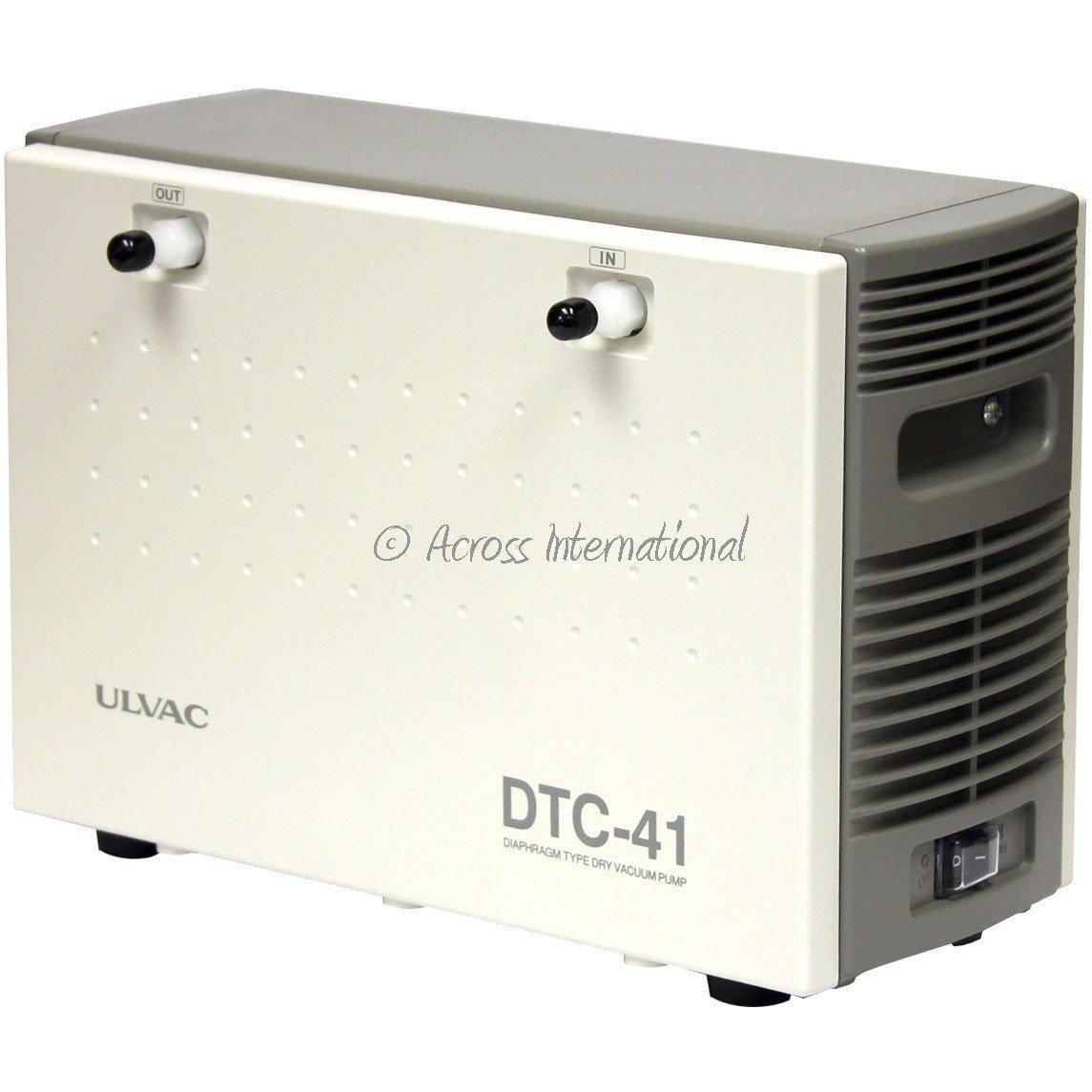

ULVAC DTC-41 1.6 cfm Dual-Stage Chemical-Resist Diaphragm Pump
Double click for enlarge
SKU: AI-208

ULVAC DTC-41 1.6 cfm Dual-Stage Chemical-Resist Diaphragm Pump

Availability: In stock 1 Items
max 1 Item(s)
$ 1,900.00

  • Manufactured and imported directly from Japan, ULVAC DTC series diaphragm pumps feature integral forced-air cooling. They have two-stage PTFE diaphragms that are ideal for pumping corrosive gases and organic solvents. These pumps are oil-free, portable, and chemical-resistant, which means less maintenance and no more frequent and costly oil change, or cross contamination.

    Ai is now the official dealer of ULVAC vacuum pumps. These pumps are made in Japan with one year warranty and technical support from ULVAC.


    • Only PTFE components are exposed to vacuum, ideal for corrosive applications
    • Very compact and portable
    • Designed to back most hybrid turbo pumps


    • Rotary evaporator
    • Evaporating system
    • Vacuum concentrator
    • Vacuum filtration
    • Vacuum drying systems
    • Medical/pharmaceutical equipments
    • Centrifuge
    • Laser-gas circulation


    Free three feet 3/8" white premium food grade silicone vacuum tubing ($19.99 value) included.


     Model  ULVAC DTC-41
     Part number  1042840
     Electrical requirements
     110V 60Hz single phase 0.13HP, 100 watts
     Full load current  1.1 amps
     Pumping rate
     1.62 cfm (6 minutes to pump down a 0.9 cu ft oven)
     Gasket material  All-PTFE
     Ultimate vacuum level
     7.5 torr / 10 mbar
     3/8" hose barb
     Adjustable vac./gas ballast  No
     Pump dimensions (LxWxH)
     13 x 5.5 x 8.5 inches
     Shipping dimensions (LxWxH)
     15 x 9 x 10 inches
     Pump weight
     23 Lb
     Shipping weight
     26 Lb
     Noise  53 dB(A)
     Working environment  32°F to 104°F (0°C to 40°C)





  • Standard package

     Part description


    Part image

     ULVAC DTC-41 1.6 cfm full chemical-resistant oil-free diaphragm pump
    1 pc

     White premium food grade silicone vacuum hose (3 ft)
    1 pc

     User's manual
    1 pc
