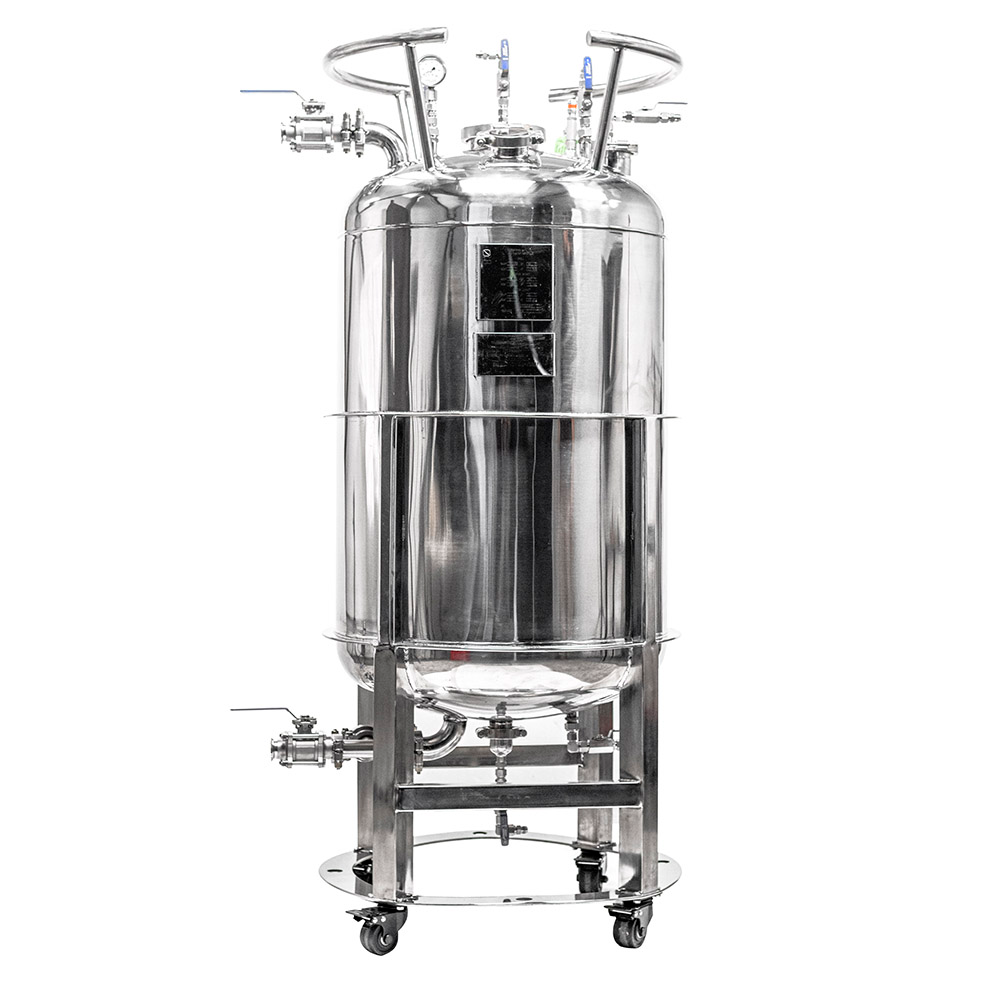

624lb ASME Double-Jacketed Solvent Tank or Collection Vessel | V1 | Assembled

Our high-quality stainless steel tanks work great as solvent tanks for your closed-loop system. Pairs perfectly with our larger Titan systems.

Features:

• Full compression vessel/build-out
• 6" center tri-clamp
• 4" secondary tri-clamp
• ASME Certified
• Easily moveable and stable
• Shell rated for and set @ 250 PSI
• Inner jacket rated and set @ 120 PSI
• Outer jacket intended for vacuum
• (2) 3" High-quality fused sights

Main Capacity:

Volume: 17262.8 in cu

Water Capacity: 74.73 gallons

Water (100% fill): 624 lbs

Butane (80% fill): 300.02 lbs

70/30 (80% fill): 283.85 lbs

Propane (80% fill): 246.11 lbs

Inner Jacket Capacity:

Volume: 4060.7 in cu

Water Capacity: 17.58 gallons

Water (100% fill): 146.69 lbs

Outer Jacket Capacity:

Vacuum-only
