Across International EasyVac 9 CFM Dual-Stage Vacuum Pump with Oil Mist Filter
SKU:
3611034
$ 949.00
(
/
)
Unavailable
Reliable and Compact Design

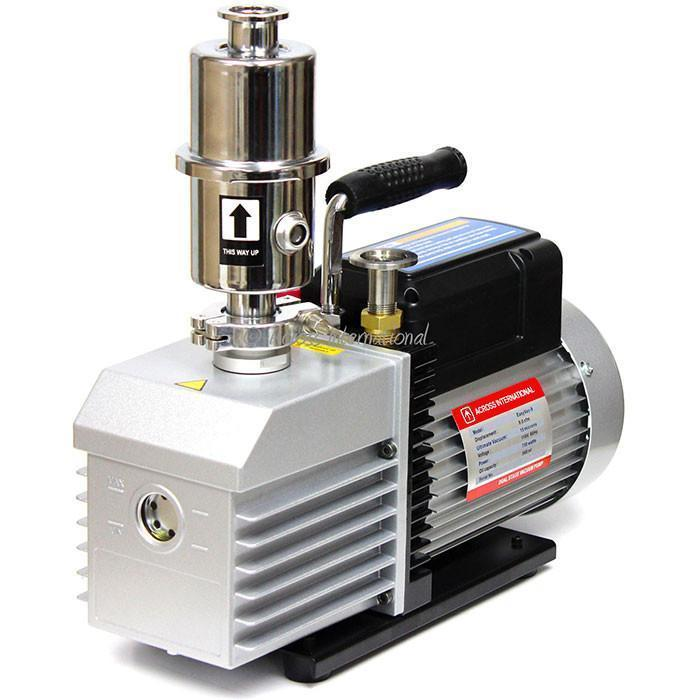

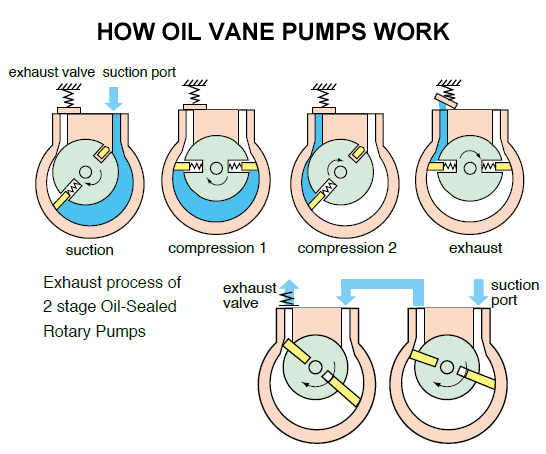

The Across International EasyVac 9 is a dual-stage, high speed, sliding-vane, rotary, compact vacuum pump with a KF25 vacuum connector. It comes with all necessary fittings, plus an exhaust oil mist filter, which returns trapped pump oil back to the pump and makes the pump run quieter. Please note that pumps should always be run in a well-ventilated area.
| Electrical requirements |
110V/220V 50/60Hz switchable, single phase 750 watts (1 HP) |
| Pumping rate |
9 cfm (110V 60Hz), 8 cfm (220V 50/60Hz) |
| Vacuum level |
15 micron/millitorr |
| Vacuum connection |
KF25/NW25 flange |
| Exhaust filter connection |
KF25/NW25 flange |
| Oil volume |
560 ml / 0.6 quart |
| Motor rate | 1720 rpm |
| Working temperature | -5 to 60°C |
|
Pump dimensions (LxWxH) |
16.5 x 6 x 11", height is 16" with exhaust filter |
| Shipping dimensions (LxWxH) |
20 x 9 x 13" |
| Pump weight |
37 Lb |
| Shipping weight |
41 Lb |
| Recommended oil | Xtractor Depot Vaccum Pump Oil - 1 Gallon, 5 Gallon |

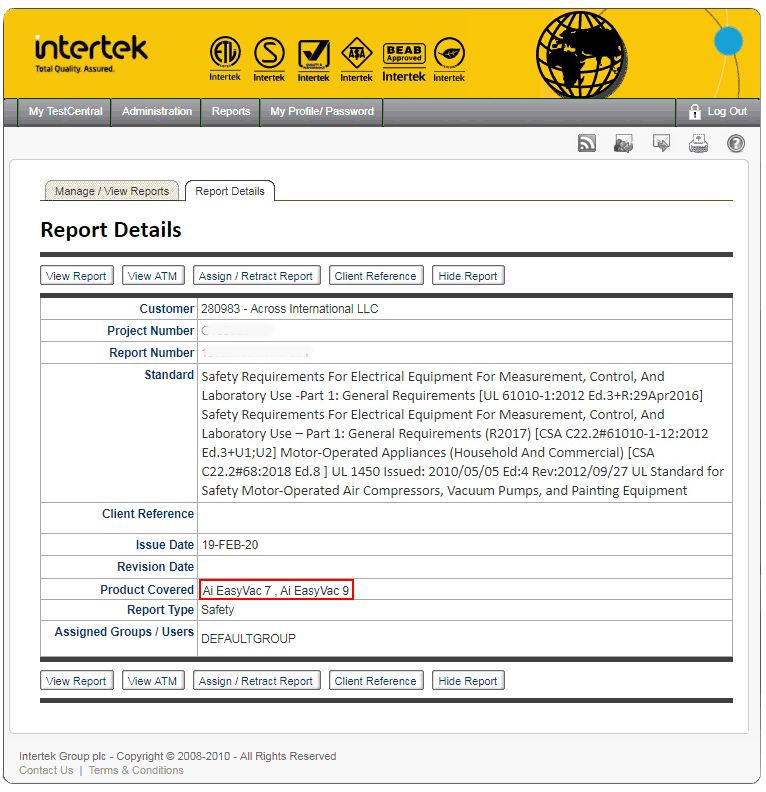

| CE compliance |
Yes |
| Warranty | One year |
| Download | Product Brochure |
Package includes
|
Part description |
Quantity |
| Ai EasyVac-9 vacuum pump with exhaust oil mist filter |
1 set |
| Ai premium vacuum pump oil | 1 pc |
| KF25 stainless steel vacuum bellow (3 ft) |
1 pc |
| KF25 wing nut flange quick clamp |
2 pcs |
| KF25 flange centering ring | 2 pcs |
| User's manual | 1 pc |
