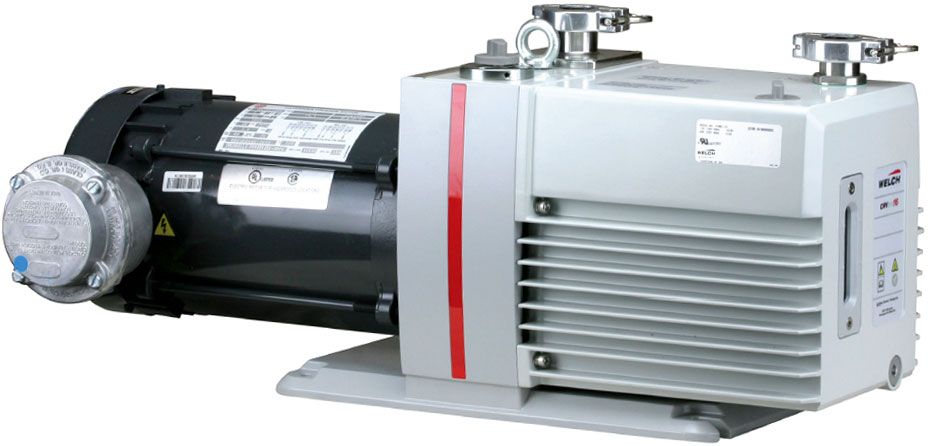

Welch 12.8 CFM CRVpro16 Explosion Proof Rotary Vane Vacuum Pump
SKU:
3821014
$ 7,446.27
$ 0.00
(
/
)
Unavailable
Note: This is the explosion proof version of the 12.8 CFM CRVpro16 that comes with an explosion proof motor, conduit wiring installation required. No cord, plug, or switch provided.
*includes Tariff charge
Specification
|
|
CRVpro8 |
CRVpro16 |
|
Free Air Displacement @ 60 Hz, cfm (L/min) |
5.6 (158) |
12.8 (363) |
|
Ultimate Pressure, torr |
1.5x10⁻³ |
2x10⁻³ |
|
Noise Level, dBA |
50 |
55 |
|
Motor Speed, RPM, @60Hz |
1740 |
1750 |
|
Motor Power, HP (kW) at 60 Hz |
0.5(0.4) |
1.1(0.85 |
|
Oil Capacity, L |
1 |
2.4 |
|
Connection Flanges |
NW 16 |
NW25 |
|
Inlet Hose Connection on -01 Models |
5/8" to 3/4" |
5/8" to 3/4" |
|
Weight, lbs (kg) |
49.6 (22.5) |
81.6 (37) |
|
Dimensions, LxWxH, in (mm) |
18.2x6.1x9.1 (463x157x230) |
22.4x8.1x11.4 (569x206x289) |
|
Pump with Explosion Proof Motor, 115V/208-230V, 60 Hz, 1 Phase, cUL Listed. |
306E-01 |
3166E-01 |
